شركة شانغهاي ديسوم للآليات والمعدات العلمية
| مكان المنشأ: | شنغهاي ، الصين |
|---|---|
| اسم العلامة التجارية: | DAESUM |
| إصدار الشهادات: | ISO |
| الحد الأدنى لكمية: | 1 |
| الجهد االكهربى: | 380 فولت، 415 فولت | دقة ملء: | ±0.2% فس |
|---|---|---|---|
| وزن: | 5000 كجم | سعة: | 200-1000 برميل في الساعة |
| نوع الحاوية: | علبة قصدير سعة 1-4 لتر | الفوهات الكمية: | 2-8 |
| فوهة المواد: | SS304/SS316/PTFE | سرعة الإخراج: | 7-10 علب/دقيقة |
| شكل الحاوية: | علبة علبة مربعة | مواد الحاوية: | حاوية معدنية |
| إمداد الجهد: | 415/220 ، 1/3phase ، 50/60 هرتز | وضع التعبئة: | فوق أو تحت المستوى السائل مع ملء سريع ومقلوب |
| نظام التحكم: | ألمانيا سيمنز/اليابان أومرون PLC | نظام التعبئة: | فوهة SS304، أنبوب مستقيم SS316، أختام PTFE |
| مادة الضميمة: | الفولاذ المقاوم للصدأ 304 | ||
| إبراز: | 1-4L automatic tin can filling machine,electric tin can palletizing line,PLC core chemical liquid filling machine,electric tin can palletizing line,PLC core chemical liquid filling machine |
||

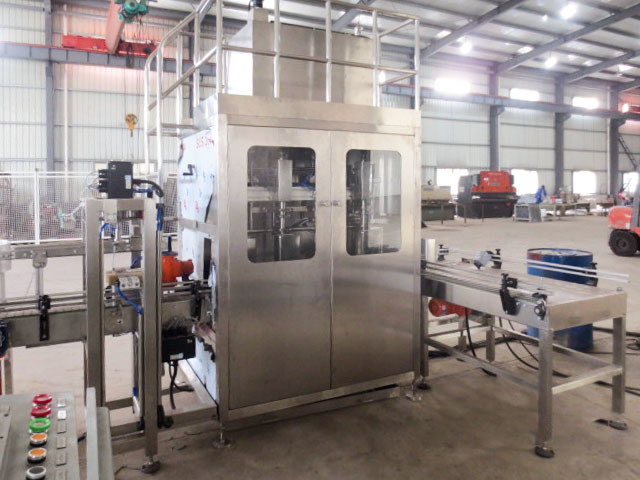

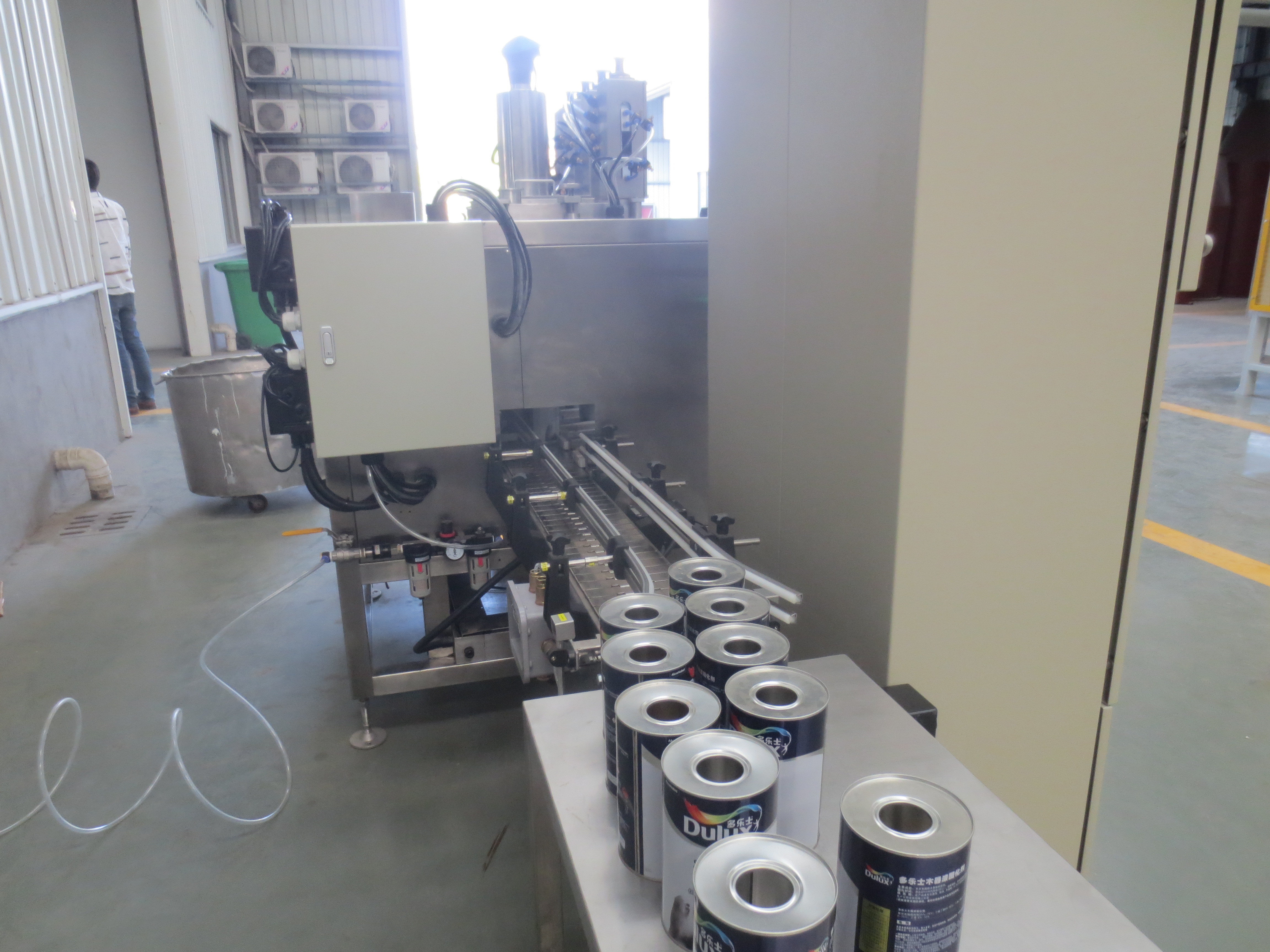

Tin Can Filling Machine with 3 Heads GZ-18ST-3(Square Metallic Tin)
*Product Application:
Applications include free flowing to viscous products, including chunky products. Fill
volumes from 5L to 25L at high flow rates with accuracies up to ±0.2% dependent upon tin
can size and type of product.
*Technical Specification:
| 1). Product | Free flow to high viscosity |
| 2). Output Speed | 7-10 Cans/Min dependent upon can size and type of product |
| 3). Container Shape | Square Tin Can |
| 4). Container Material | Metal container |
| 5). Container size | Standard 18L (More on requests) |
| 6). Voltage supply | 415/220, 1/3Phase, 50/60Hz |
| 7). Filling accuracy | Class X (0.5) (0.2%) |
| 8). Filling mode | Above or under liquid level with fast&dribble fill |

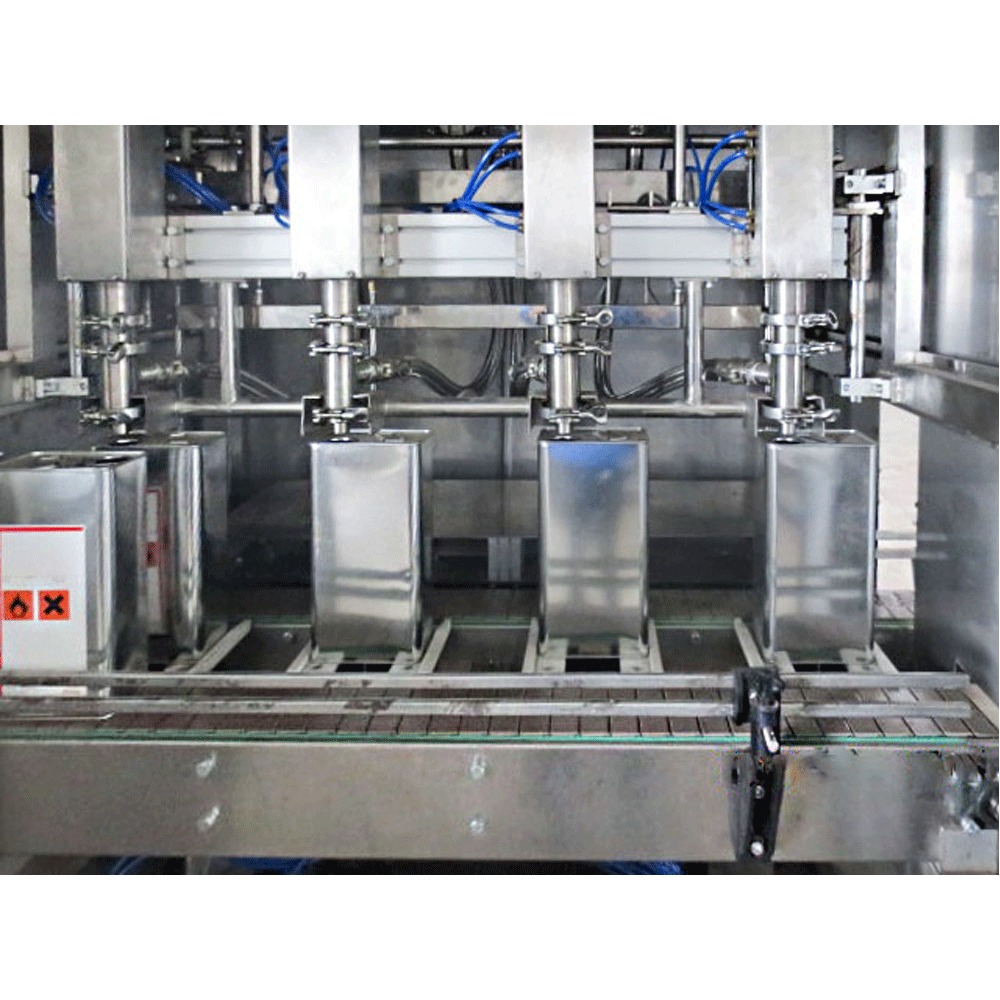

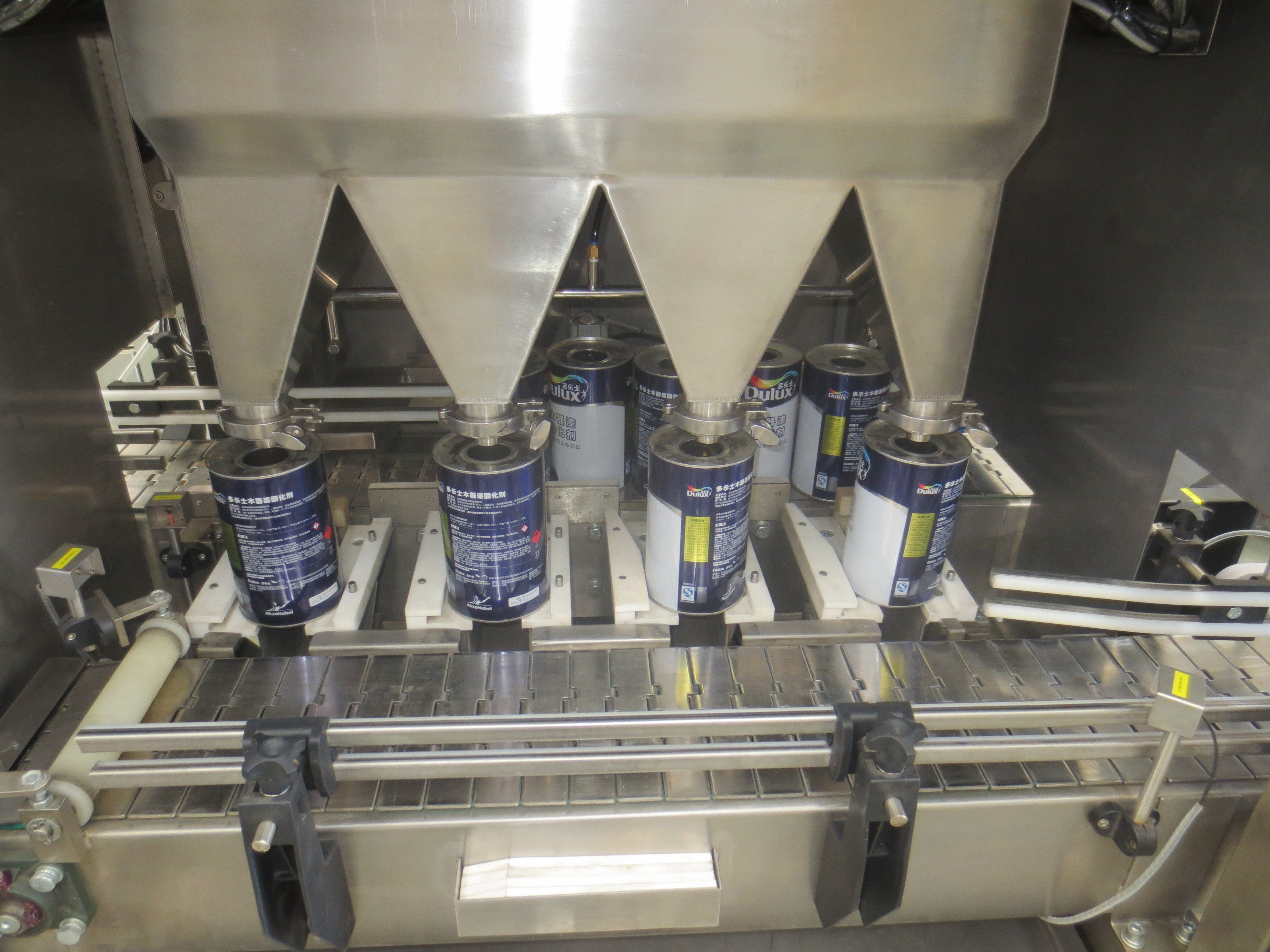

*Filling System includes:
1). Three (3) set of SS304 Nozzle equipped;
2). No spilling of the product onto clean cans and roller conveyor with hood cover under the
nozzle.
3). Quick-release, fast inter-changeable lance for easy and fast maintenance;SS316 straight
pipe;
4). Top/Low Fill, auto lowering of lance assembly together with the hood cover and retract to
its original up position;
5). METTLER TOLEDO Brand Weight Scaler with digital display;
6). Heavy duty weighting platform mounted single load cell, overload protected;
7). All parts in contact with liquid must be in SS304&PTFE seals;
8). spring assists to close filling nozzle in the even of power failure;
9). Stainless steel 304 enclosure with front viewing Perspex mounted hinge cover;
10). IP55 class control cabinet to house weighing indicator and pneumatic box to house all
pneumatic components.
*Control system includes:
1). Germany Siemens/Japan Omron PLC Control System;
2). Manual/Net/Gross Filling. Auto two stages fast/dribble fill
* Optional Item&Accessary Equipment
1). Digital Touch Screen Panel with System Integration;
2). PLC to DCS synchronization and simulation;
3). Storage tank with level controller;
4). Available to suit Hazardous Environments with Ex-proof system;
5). Tin De-palletizer and Palletizer
6). Auto Capping Machine (Both of Press-on and screw cap);
7). Check weight, labeler, robot arm palletizer,etc
8). Nozzle diving system for foamy product.
Customized according to the customer request is also allowed.
Call/email now for a quick response to your application questions.
