Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour

Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour
Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour
المعلومات الأساسية
مكان المنشأ: شنغهاي ، الصين
اسم العلامة التجارية: DAESUM
الحد الأدنى لكمية: 1
افضل سعر ﺎﺘﺼﻟ ﺍﻶﻧ
الجهد االكهربى: 380 فولت، 415 فولت وزن: 1500 كجم
حجم ملء: 40 لتر، 60 لتر، 100 لتر، 200 لتر، 1000 لتر دقة ملء: ± 0.1-0.2٪
نطاق ملء: 40 لتر-1000 لتر سرعة التعبئة (الطبل): 30-40 طبلة/ساعة
سرعة التعبئة (IBC): 6-8 IBCS/ساعة مادة: S304
نظام التحكم: PLC+ شاشة اللمس عدد الفوهة: 1
سرعة الإخراج: 50-60 الطبول/ساعة إمداد الجهد: 415/220 ، 1/3phase ، 50/60 هرتز
وضع التعبئة: فوق أو تحت المستوى السائل مع ملء سريع ومقلوب المكونات الأساسية: المحرك، أوعية الضغط، PLC، التروس، المحامل، علبة التروس، الناقل الدوار
نموذج: GZ1000
إبراز:

High Accuracy Pallet Filling Machine,40L-1000L Drum Filling Machine,30-40 Drums/Hour IBC Filling Machine

,

40L-1000L Drum Filling Machine

,

30-40 Drums/Hour IBC Filling Machine

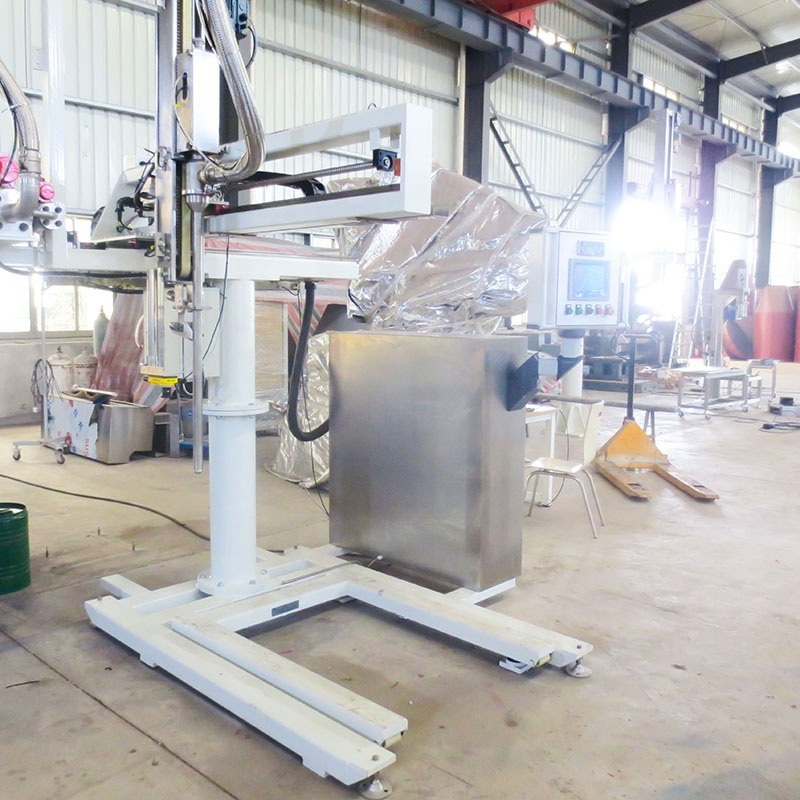

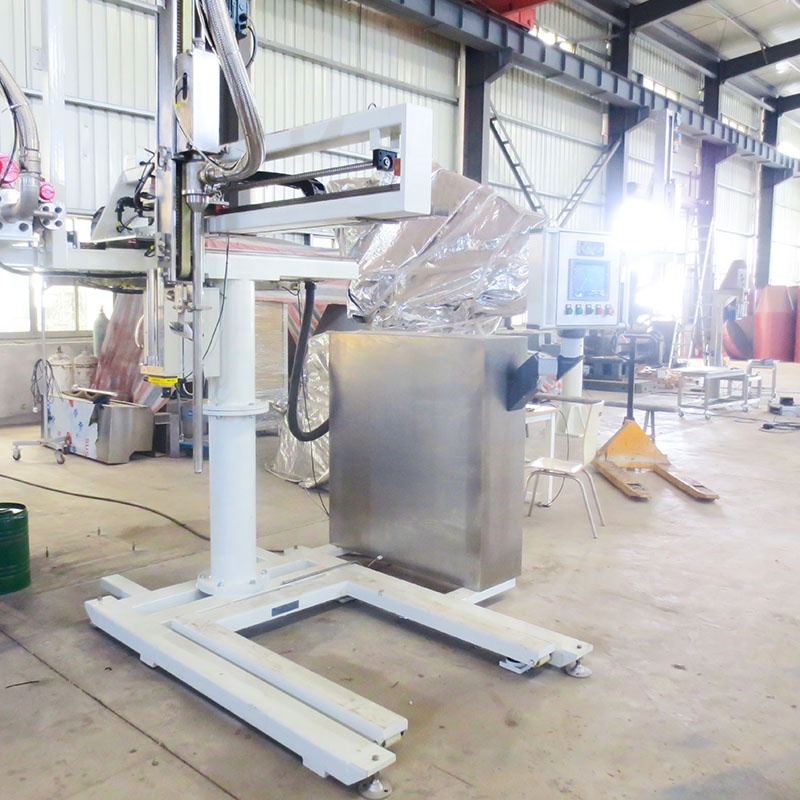

Automatic Visual Type Pneumatic Pallet Filling Machine

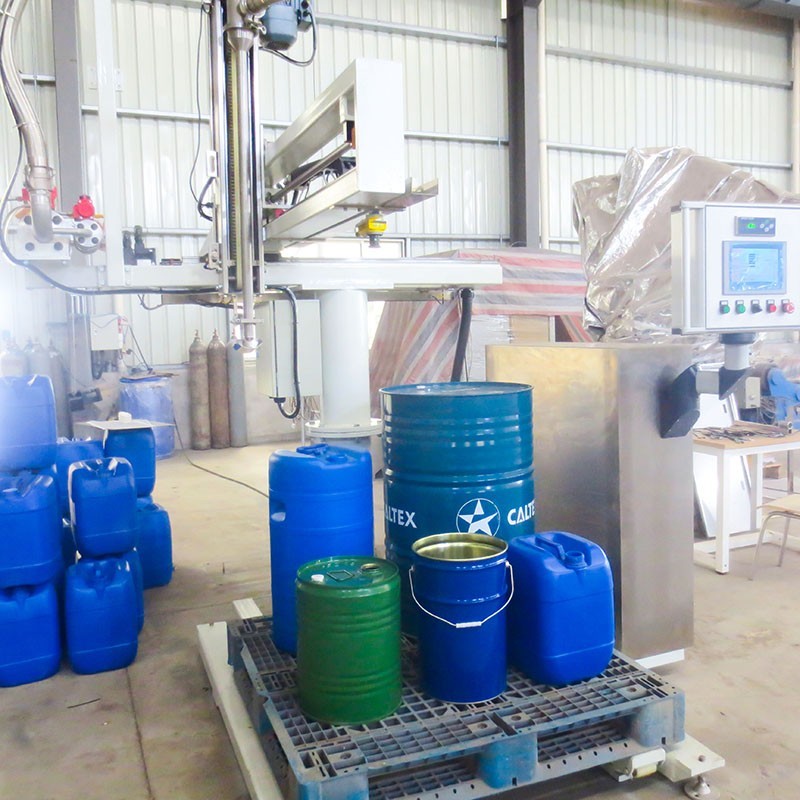

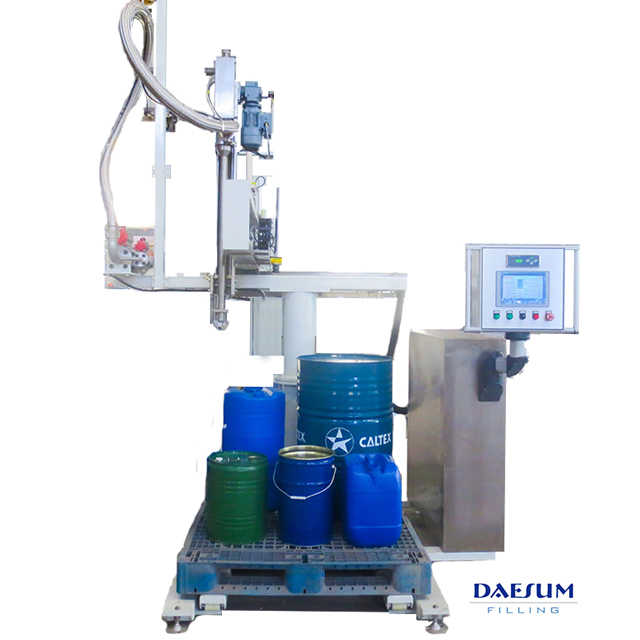

High-performance filling solution for jerrycans, drums, IBC tanks, pails, and barrels in the plastic, oil, and chemical industries.

Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour 0 Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour 1 Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour 2
Model: GZ-1000T
Product Application

Designed for free-flowing to viscous products, including chunky materials. Handles fill volumes from 50L to 1000L with high flow rates and accuracies up to ±0.2%, depending on drum size and product type.

Technical Specifications
Feature Specification
Product Compatibility Free flow to high viscosity
Output Speed 50-60 drums/hour (varies by drum size and product)
Container Shape Round IBC Tank, pail, drum or others
Drum Material Plastic & Metal containers
Drum Size Standard 200L (custom sizes available)
Voltage Supply 415/220V, 1/3Phase, 50/60Hz
Filling Accuracy Class X (0.5) (0.2%)
Filling Mode Above or under liquid level with fast & dribble fill

Custom configurations available to meet specific customer requirements.

Build Type
  • Stainless Steel or Zinc Painted Finish
  • Integrated system performs debunging, filling, bunging, clinching, stenciling, and palletizing in compact space
  • Operates efficiently with minimal personnel
Filling System Features
  • Spill-free operation with hood cover under nozzle
  • Manual/Net/Gross filling options with auto two-stage fast & dribble fill
  • Quick-release, interchangeable SS316 lance for easy maintenance
  • Top/Low fill capability with auto-lowering lance assembly
  • METTLER TOLEDO brand weight scaler with digital display
  • Heavy-duty overload-protected weighting platform

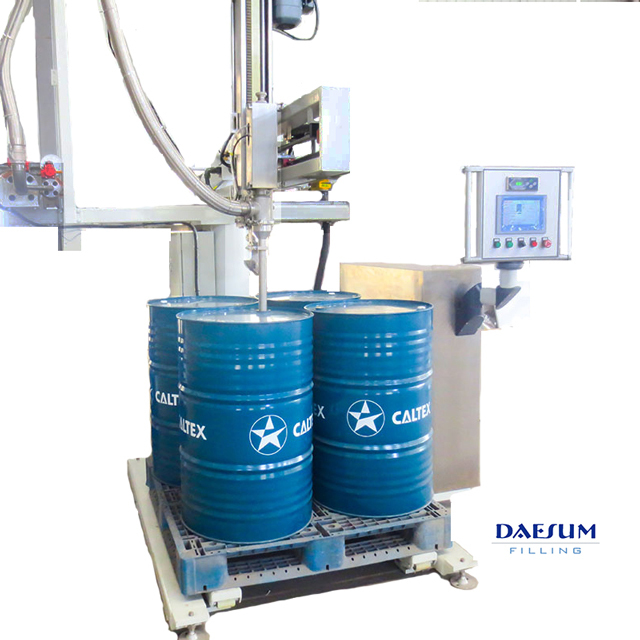

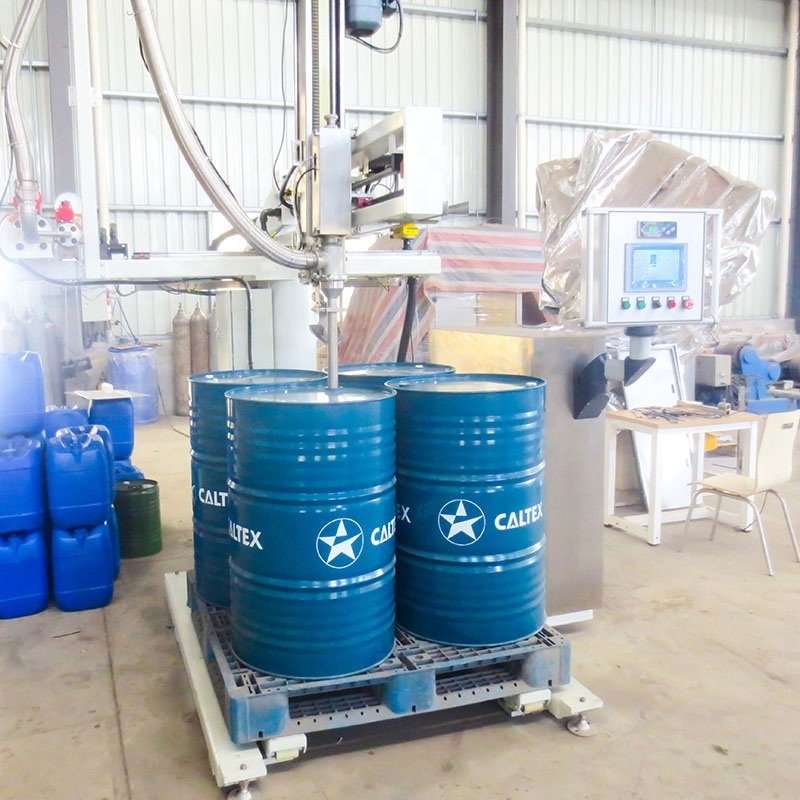

  • Pallet-fed operation (2x2 configuration) with powered or gravity conveyor
  • Spring-assisted nozzle closure for power failure protection
  • Stainless steel 304 enclosure with Perspex viewing window
  • Safety interlock prevents lance withdrawal until nozzle fully closed
  • IP55 class control cabinet housing all pneumatic components
Control System Features
  • Germany Siemens/Japan Omron PLC Control System
  • Manual/Net/Gross filling with auto two-stage fast/dribble fill
Optional Features
  • Digital Touch Screen Panel with System Integration
  • PLC to DCS synchronization and simulation
  • Hazardous Environment Ex-proof system
  • Manual Drum Crimper Tool with ground support
  • Nozzle diving system
Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour 3 Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour 4 Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour 5 Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour 6 Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour 7 Automatic Pneumatic Pallet Filling Machine with High Accuracy ±0.1-0.2% for 40L-1000L Drums and IBCs at 30-40 Drums/Hour 8
Contact us today for application-specific questions and customized solutions.
